LPG Cylinder

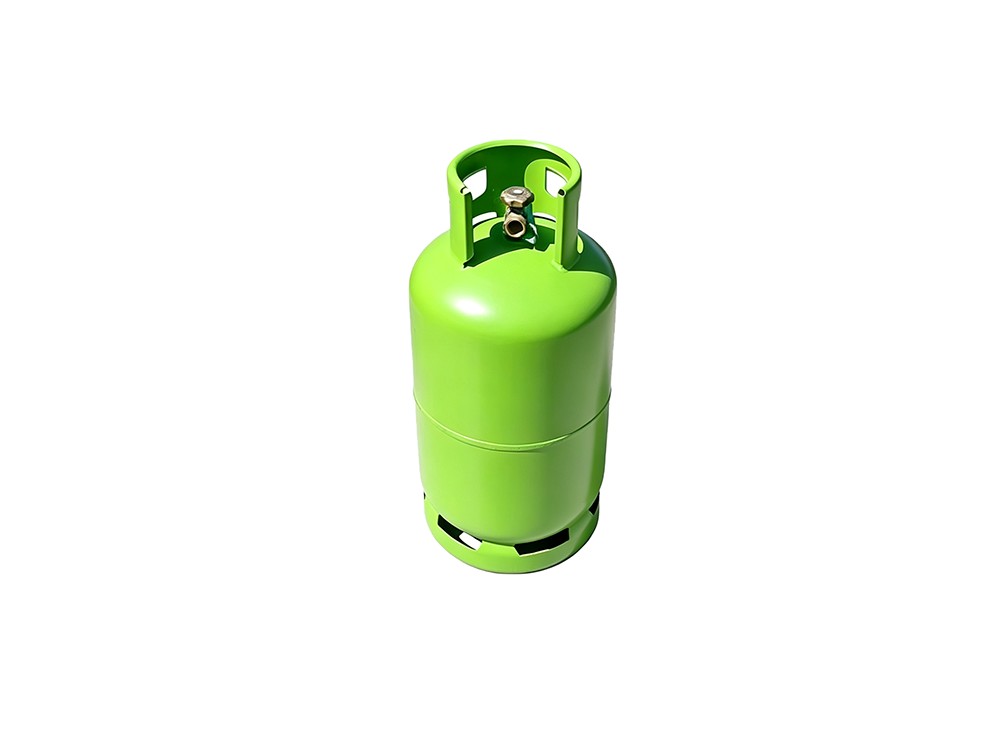

9KG LPG Cylinder -- Medium LPG Cylinder
This is the size used for home gas cylinder product range,which is popular in many countries. Standards and requirements vary from country to country,The dimensions shown for liquefied petroleum gas cylinders are for reference only. Actual dimensions are subject to real‑world products. Product colors can be customized according to your requirements.
Technical Specifications
|
Capacity |
9KG |
Water Capacity |
≥21.6L |
|
Material |
HP295 |
Application |
Household & Light Commercial Use |
|
Storage Medium |
Liquefied Petroleum Gas (LPG) |
Condition |
NEW |
|
Volume Type |
Medium-Size Cylinder |
Standard Wall Thickness |
2.5MM |
|
Operating Pressure |
2.1 MPa |
Test Pressure |
3.2 MPa |
|
Overall Height |
501 mm |
Cylinder Inner Diameter |
314 mm |
|
Base Outer Diameter |
240 mm |
Origin |
China |
|
Valve |
Optional |
Customization |
Customizable |
Product Description
The 9KG LPG Cylinder is designed for commercial applications and households with frequent gas consumption. It is widely used by gas distributors, retail filling stations, restaurants, catering businesses and residential users.
Manufactured from high-quality carbon steel, each 9kg Empty LPG gas cylinder is formed, welded and inspected according to the confirmed technical specifications and destination-market requirements. Quality inspections may include dimensional checks, hydraulic pressure testing, air-tightness testing and weld inspection to verify sealing performance and pressure resistance.
As a professional 9kg LPG gas cylinder Manufacturer and Supplier, Shuofang supports both standard orders and customized production. Customers can select the cylinder color, valve type, shroud, foot ring, logo, embossed markings and packaging according to local filling systems and branding requirements.
OEM 9KG LPG Cylinder services are available for LPG brands, importers, and regional distributors. We also support Bulk 9KG LPG Cylinder orders for customers requiring stable batch production, customized configurations and long-term supply.
Safety Features:
ISO 4706 approval for Cylinder
Approved by Government of China's Explosives department
Periodic testing of Cylinders
Mention of tare weight on Cylinder
of Batch and Serial Number
The established MS conforms to:GB/T 19001-2016/ISO 9001:2015
Case Studies
Case Study: Automation Upgrade of an Old LPG Cylinder Manufacturing Plant
A domestic LPG cylinder manufacturing plant, plagued by outdated equipment, high failure rates, high maintenance costs, high reliance on manual labor, and low production efficiency, struggled to meet current capacity and quality standards.
Domestic Enterprise's Old Plant Site New Production Line Workshop Project
This was a key project for the upgrading and renovation of an existing LPG cylinder manufacturing plant in China. The project involved constructing a standardized LPG cylinder production line workshop on the existing idle space and existing production facilities.
New Automated Production Line Project with an Annual Output of 1.68 Million Lpg Cylinders
Henan Shuangfang Intelligent Equipment Co., Ltd. is a comprehensive enterprise integrating the planning, design, production, sales and service of automated equipment. Our service areas include: CNC bending machines, liquefied petroleum gas cylinders, fully automatic liquefied petroleum gas cylinder production lines, and semi-automatic liquefied petroleum gas cylinder production lines.
