LPG Cylinder

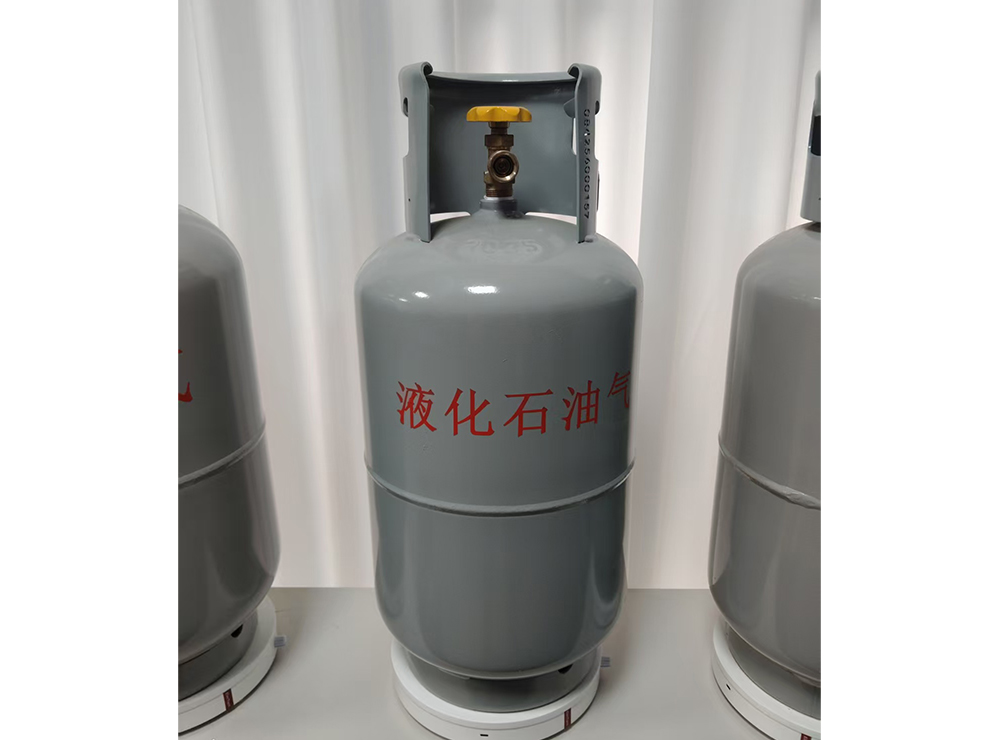

10KG LPG Cylinder
Commercial-grade 10kg LPG gas cylinder for restaurants and distributors.
Standards and requirements vary from country to country. All specifications shown on the website are for reference only, and actual technical data & cylinder colors can be customized as per customer requirements.
Technical Specifications of 6KG LPG Cylinder
|
Capacity |
10KG |
Water Capacity |
≥23.9 L |
|
Material |
Carbon Steel |
Application |
Commercial, Distributors, Retail Gas Filling Stations |
|
Storage Medium |
Liquefied Petroleum Gas (LPG) |
Condition |
New |
|
Volume Type |
Medium-Size Cylinder |
Wall Thickness |
≥2.1 mm |
|
Working Pressure |
1.6MPa ≤ p ＜ 10.0MPa |
Pressure Grade |
Medium Pressure (1.6MPa ≤ p ＜ 10.0MPa) |
|
Origin |
China |
Valve |
Optional |
|
Customization |
Customizable |
|
|
6KG LPG Cylinder Description

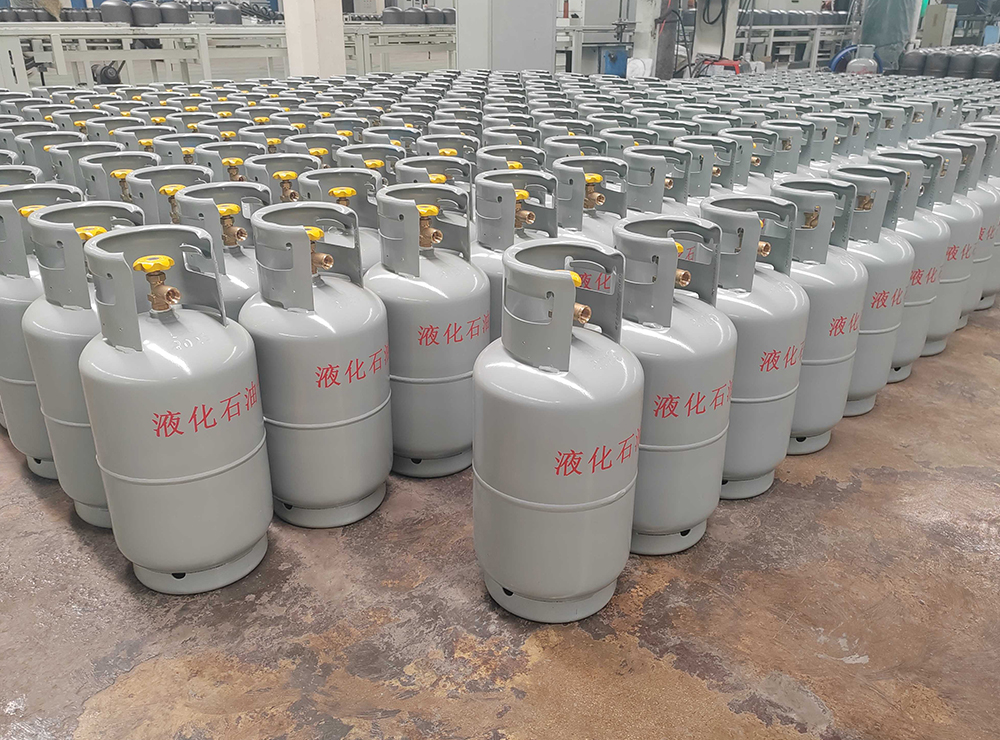

The 10KG portable LPG cylinder is designed for commercial applications and households with frequent gas consumption. Offering a practical balance between capacity and portability, the 10KG LPG Cylinder is widely used by gas distributors, retail filling stations, restaurants, cafés, food stalls and other catering businesses.
Manufactured from high-quality carbon steel, each 10kg Empty LPG gas cylinder is formed, welded and inspected according to the confirmed technical specifications and destination-market requirements. Quality inspections may include dimensional checks, hydraulic pressure testing, air-tightness testing and weld inspection to verify sealing performance and pressure resistance.
As a professional 10kg LPG gas cylinder Manufacturer and Supplier in China, Shuofang supports standard purchasing and customized production. Customers can select the valve type, cylinder color, logo, embossed markings, guard ring, foot ring and packaging according to local filling systems and branding requirements.
OEM 10KG LPG Cylinder services are available for LPG brands, importers, filling stations and regional distributors. We also support Bulk 10KG LPG Cylinder orders for buyers requiring customized configurations, consistent batch production and long-term supply.
Safety features:
ISO 4706 approval for Cylinder
Approved by Government of China's Explosives department
Periodic testing of Cylinders
Mention of tare weight on Cylinder
of Batch and Serial Number
The established MS conforms to:GB/T 19001-2016/ISO 9001:2015
Henan Shuofang Intelligent Equipment Co., Ltd. is an integrated enterprise specializing in the manufacturing and sales of LPG cylinders and LPG cylinder production lines.We rank among the few professional manufacturers in China that hold dual core technologies for both LPG cylinder production and intelligent production line equipment fabrication.
Case Studies

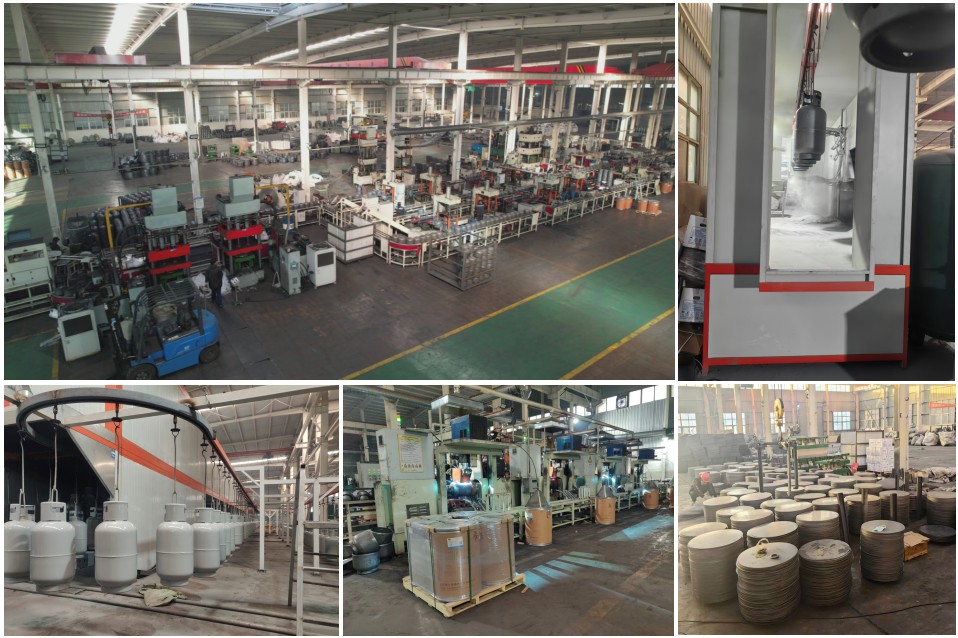

Case Study: Automation Upgrade of an Old LPG Cylinder Manufacturing Plant
A domestic LPG cylinder manufacturing plant, plagued by outdated equipment, high failure rates, high maintenance costs, high reliance on manual labor, and low production efficiency, struggled to meet current capacity and quality standards.
Domestic Enterprise's Old Plant Site New Production Line Workshop Project
This was a key project for the upgrading and renovation of an existing LPG cylinder manufacturing plant in China. The project involved constructing a standardized LPG cylinder production line workshop on the existing idle space and existing production facilities.
New Automated Production Line Project with an Annual Output of 1.68 Million Lpg Cylinders
Henan Shuangfang Intelligent Equipment Co., Ltd. is a comprehensive enterprise integrating the planning, design, production, sales and service of automated equipment. Our service areas include: CNC bending machines, liquefied petroleum gas cylinders, fully automatic liquefied petroleum gas cylinder production lines, and semi-automatic liquefied petroleum gas cylinder production lines.
